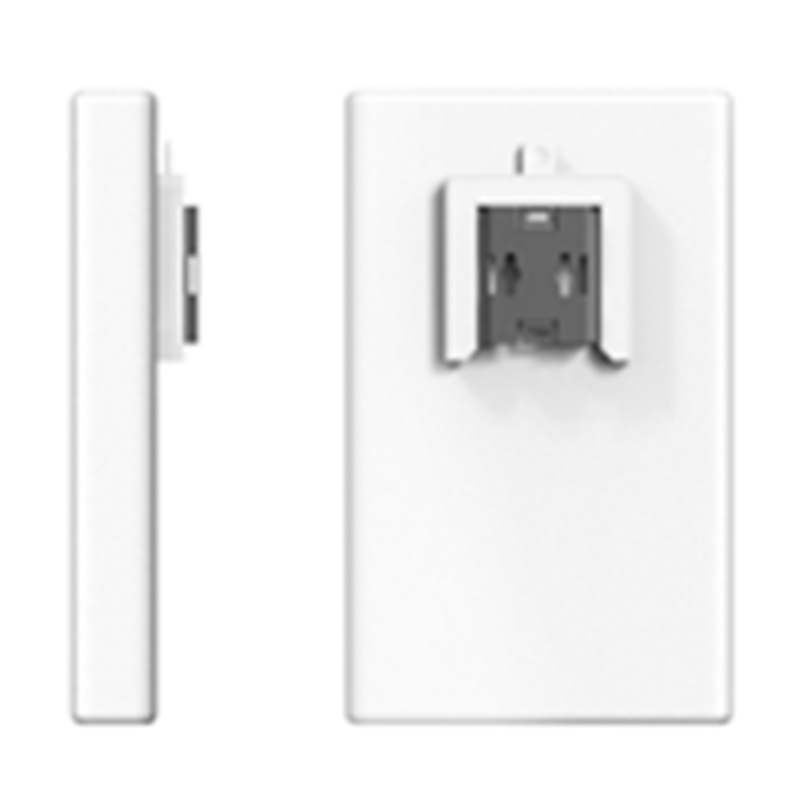

型號:MT-5E2515

品名:5G CPE


在線詢價

Dimension

230*140*31mm

Bands

5G   NR :    n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78

4G FDD Bands:   B1/B3/B5/B7/B8/B20/B28/B32

4G TDD Bands: B38/B40/B41/B42/B43

Form factor

5G/4G   Outdoor CPE

Wi-Fi

802.11   b/g/n/ac/ax ; 2.4Ghz ,for management only

Level Waterproof

IP67

Data Rates

NR   sub6: DL 3.8Gbps/UL 2.5Gbps

LTE:DL   1.6Gbps/UL 316Mbps

5G   NR DL 4*4 MIMO;  UL:2*2 MIMO ;LTE   DL:4*4 MIMO

Hardware

RJ45

1*   RJ45 LAN 2.5Gbps  with POE

SIM

4FF, eSIM   optional

LED

Power/4G/5G

Antenna

5G/LTE- Internal  antenna *4, Wi-Fi-Internal antenna *2

Power

48V,   0.3A,POE

Battery

Not   Support

Installation   Method

wall   mounted; pole mounted;

Software

Update

FOTA   & Local update

Support   OS

Compatible with Windows / MACOS /   Linux / Android

Others

IPv4/IPv6

Operation   Temperature

Operation   Temperature: -40 to 55℃ / Operation Humidity: 10% to 80%

Storage   Temperature: -40 to 60℃ /  Storage   Humidity: 5% to 95%
